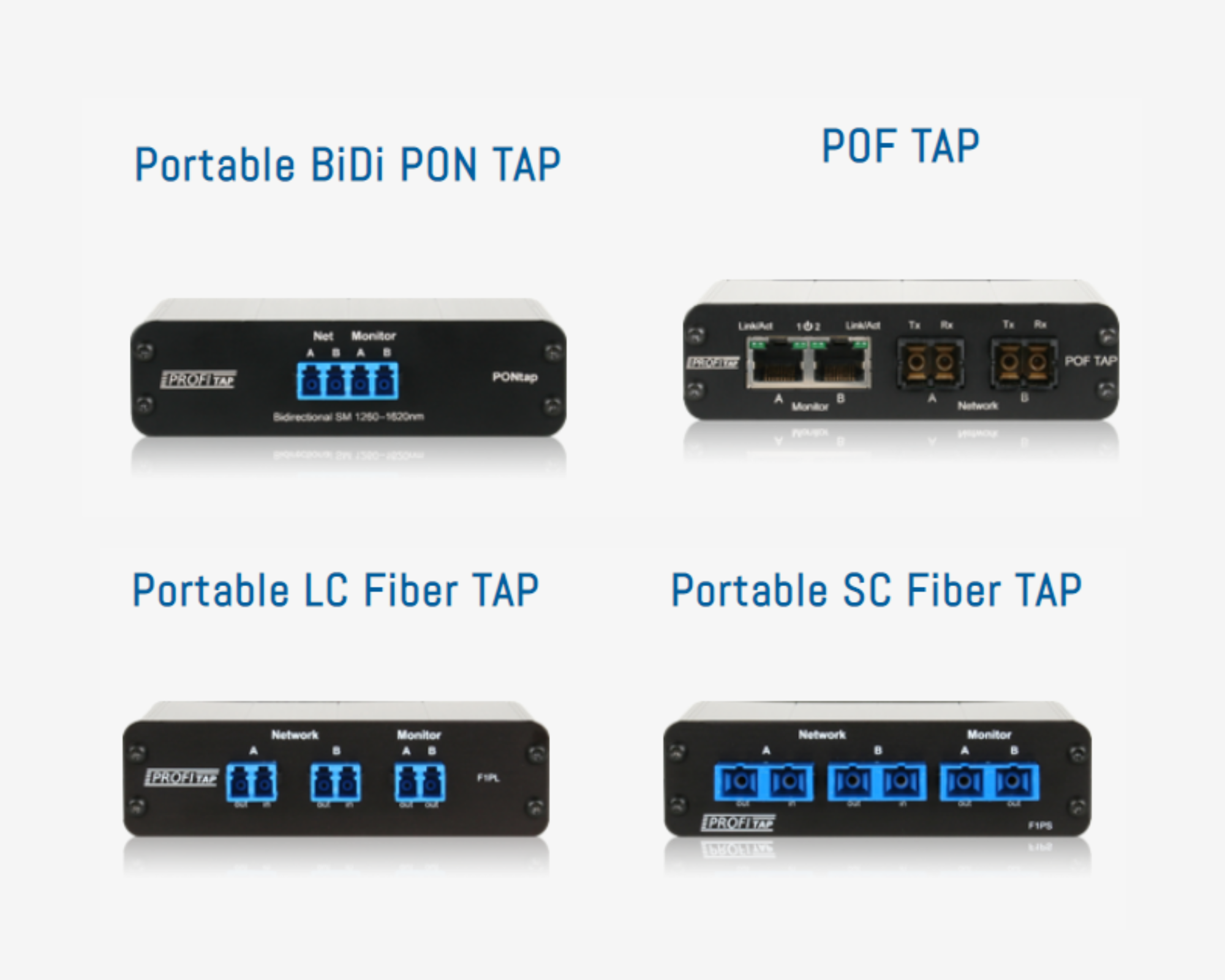

Portable Fiber TAPs
Profitap portable Fiber TAPs provide passive, non-intrusive in-line network access to data flowing across the network. Profitap portable Fiber TAPs deliver the exact duplicate of the signal on the network link without any disruption to the network. Their portable design allows them to be easily transported and deployed in the field.
Documents:
Key Features

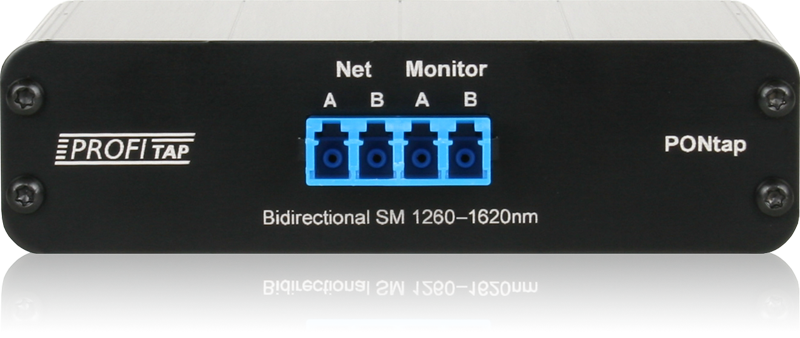

F1PLP
The F1PLP is a portable Bidirectional PON TAP designed to provide complete, safe, in-line access for the monitoring of bidirectional passive optical networks. Profitap Bidirectional PON TAPs enable the monitoring of simplex bidirectional single-mode connections (9/125 µm, 1260–1620 nm). Invisible to the network and completely passive, the Bidirectional PON TAPs will not affect the performance of your network.
Features
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
- Wavelengths 1260–1620 nm
Specifications
| Network Link | Monitor Output | Connectors | Type | Speed | Split Ratio | Footprint |
|---|---|---|---|---|---|---|
| 1 | 1 | LC | SM 9/125 µm 1260–1620 nm | 1-100 Gbps | 50/50 | 113 x 88 x 30 mm 4.4 x 3.5 x 1.2 in |
Download Datasheet >> | ||||||

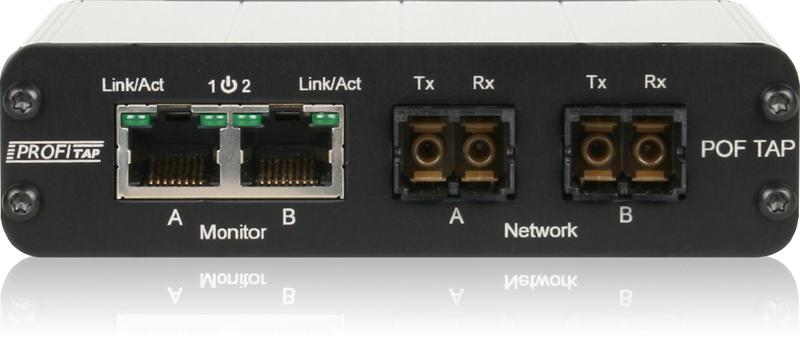

POF-TAP
The Profitap POF-TAP is a Plastic Optical Fiber TAP designed to provide secure and safe access for use with existing industrial copper network monitoring systems. The POF-TAP allows for monitoring Ethernet communication on Polymer Optical Fiber Links running on 10/100M network speeds. The POF-TAP accurately duplicates and converts the plastic optical fiber signal into a full-duplex 10/100 UTP signal without adding latency on the network link.
Features
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Redundant powering
Specifications
| Network Link | Monitor Output | Connectors | Type | Speed | Split Ratio | Footprint |
|---|---|---|---|---|---|---|
| 1 | 1 | POF & RJ45 | --- | 10/100 Mbps | --- | 113 x 88 x 30 mm 4.4 x 3.5 x 1.2 in |
Download Datasheet >> | ||||||

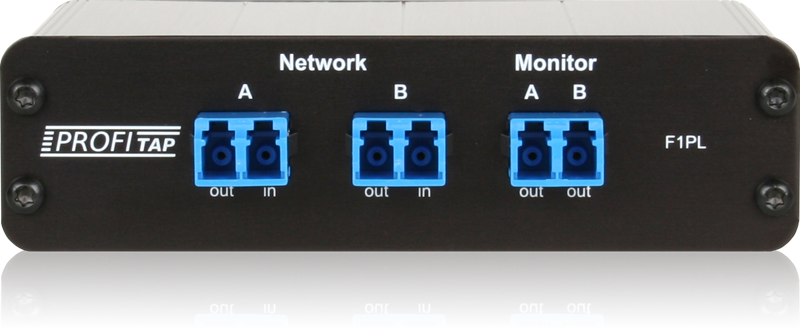

F1PL
The Profitap F1PL is a passive portable fiber optic TAP that provides in-line network access to data flowing across the network. The 1-Link LC Fiber TAP enables the monitoring of 1-100G fiber optic links. Its portable design allows it to be easily deployed in the field. The F1PL delivers the exact duplicate of the signal on the network link without any disruption to the network. Because the TAP requires no power, it ensures a permanent network link without introducing a single point of failure to the network.
Features
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
- Various split ratios available
Specifications
| Network Link | Monitor Output | Connectors | Type | Speed | Split Ratio | Footprint |
|---|---|---|---|---|---|---|
| 1 | 1 | LC | MM 62.5/125 µm MM 50/125 µm SM 9/125 µm | 1 Gbps 1-25 Gbps 1-100 Gbps | 50/50 60/40 70/30 | 113 x 88 x 30 mm 4.4 x 3.5 x 1.2 in |
Download Datasheet >> | ||||||

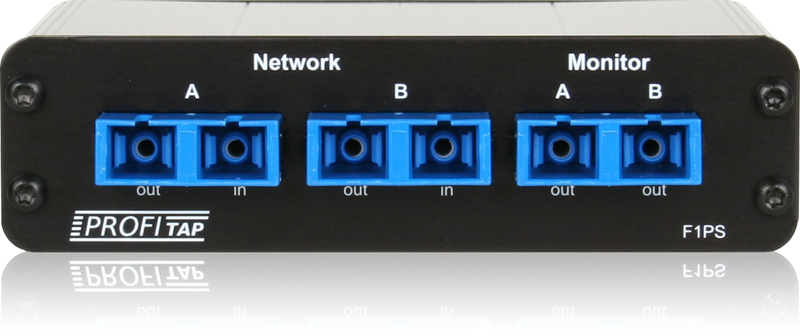

F1PS
The Profitap 1-Link Portable SC Fiber TAP provides safe access to in-line fiber optic network traffic. It is designed to enable accurate in-line monitoring of half/full duplex fiber networks without introducing a single point of failure to the network. Its portable design allows it to be easily deployed in the field.
Features
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
- Various split ratios available
Specifications
| Network Link | Monitor Output | Connectors | Type | Speed | Split Ratio | Footprint |
|---|---|---|---|---|---|---|
| 1 | 1 | SC | MM 62.5/125 µm MM 50/125 µm SM 9/125 µm | 1 Gbps 1-10 Gbps 1-100 Gbps | 50/50 60/40 70/30 | 113 x 88 x 30 mm 4.4 x 3.5 x 1.2 in |
Download Datasheet >> | ||||||
Profitap fiber TAPs provide secure in-line network access for the monitoring of 1–400 Gbps fiber networks. By splitting the light flowing on the network link, fiber TAPs deliver an exact copy of the data for real-time monitoring and analysis, without disrupting the network. Passive fiber optic TAPs require no power, and therefore introduce no point of failure when deployed in a network.
Profitap fiber TAPs are extensively tested before and after assembly by our team of experts, and are available in various split ratios and configurations to meet your specific requirements.
