DSX CableAnalyzer – DSX5000/DSX8000
The DSX CableAnalyzer Series copper cable certifiers enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.
Documents:
Key Features
- Versiv enables users to accomplish more than ever before with a cable tester, by accelerating every step of the testing process
- LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even location from any smart device
- ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
- Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
- LinkWare PC management software provides unmatched analysis of test results and professional test reports
- The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple test that locates the problem

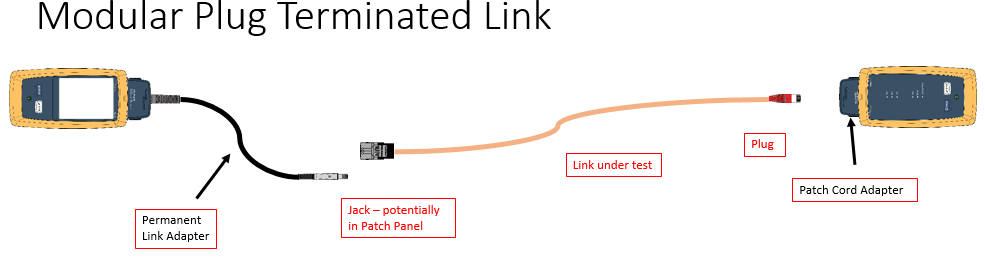

There may be scenarios where a typical four-connector channel is not used when connecting these types of devices– especially those that reside in the ceiling space where it is impractical to install a faceplate. Instead, there is just one patch cord in the telecommunications room and the permanent link is terminated at the other end with a plug so it can plug directly into the device, essentially eliminating the equipment cord. This creates what is now known as a Modular Plug Terminated Link, or MPTL. The DSX CableAnalyzer™ is capable of certifying MPTL by using a patch cord adapter on one end and a permanent link on the opposite end (see image below).
• Eight second Cat 6A test time contributes to the fastest way to gain certification
• Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
• Manage up to 12,000 Cat 6A test results with full graphics
• Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
• Integrated Wi-Fi allows you to easily upload results to LinkWareTM Live
• Over 1 billion links reported on LinkWare PC management software
• LinkWare Live is a cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device. With LinkWare Live, you can
• Keep track of every test on every job. Get an overview of every project from any smart device. Drill down to each individual test. Instantly receive notification of incorrect test setting or cable IDs.
• Get it right the first time. Define cable IDs and test settings from your PC or tablet. Then send them to the testers or Brother printers at the jobsite for mistake-free testing and labeling.
• Keep your testers up to date. Standards can change without notice, and an out-of-date test report can mean hours of re-testing. LinkWare Live automatically ensures your testers are running the latest.
• Stop wasting time and gas driving testers back to the office. Integrated Wi-Fi allows you to upload your test results straight from the job site to LinkWare Live. Then download them automatically to the right job for fast report generation with LinkWare PC.
• Avoid Project Delays. Track the last used location and monitor the status of all testers to ensure they are always calibrated and running the latest firmware*
• Supports all Versiv models: DSX CableAnalyzer Series, CertiFiber Pro, OptiFiber Pro, and the FI-7000.
The DSX CableAnalyzer Series family copper cable certifier is based on two modules: the DSX-5000 and DSX-8000. The DSX-5000 certifies twisted pair Cat 5e, 6, 6A and Class FA cabling with limits up to 1000 MHz. The DSX-8000 certifies twisted pair Cat 5e, 6, 6A, 8 and Class I/II cabling with limits up to 2000 MHz.
| Copper Certification | ||
| DSX-8000 CableAnalyzer™ | DSX-5000 CableAnalyzer™ | |
| Category 6A / Class EA test time | 8 seconds | 10 seconds |
| Category 8 / Class I/II test time | 15 seconds | |
| HDTDX/HDTDR diagnostic test times | ≈ 3 seconds | ≈ 3 seconds |
| Internal memory | ≈ 5,000 Cat 8 with plots ≈ 12,000 Cat 6A with plots | ≈ 12,000 Cat 6A with plots |
| Level V Accuracy (1 GHz) | ✓ | ✓ |
| Level VI/2G Accuracy (2 GHz) | ✓ | |
| Resistance Unbalance measurement | ✓ | ✓ |
| Shield integrity check | ✓ | ✓ |
| TCL measurement | ✓ | ✓ |
| ELTCTL measurement | ✓ | ✓ |
| CDNEXT measurement | ✓ | ✓ |
| CMRL measurement | ✓ | ✓ |
| Built in Alien XTalk module | ✓ | ✓ |
| Channel Adapter | 2 GHz Range | 1 GHz Range |
| Permanent Link Adapter | 2 GHz Range | 1 GHz Range |
| Optional Accessories | ||
| Patch cord adapters | Category 5e, 6 and 6A patch cord | Category 5e, 6 and 6A patch cord |
| Coax Adapter | ✓ | ✓ |
| M12 Adapter | ✓ | ✓ |
| TERA Adapter | ✓ | ✓ |
| GG45 Adapter | ✓ | ✓ |
