High-Density Modular TAP
Flexible, Scalable, Non-Intrusive Passive Fiber Optic TAP
Profitap MOD-TAP is a flexible and scalable fiber optic TAP solution that provides access to network traffic for a wide variety of fiber types and standards. The MOD-TAP forwards traffic to monitoring and security tools without any packet loss.
With a modular design and a wide range of fully passive TAP modules available, different models can be combined to mix different fiber types in a single chassis. The MOD-TAP brings a high density of TAPs to your monitoring system, with up to 24 TAP modules per chassis.
The MOD-TAP is an ideal solution when maximum flexibility and high density are required.
Documents:
Key Features
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Various split ratios available
- Passive, unpowered
- LC, MTP, 40/100G BiDi, and DiodeTAP modules available
- Diode function protects network against light insertion from TAP ports (>25 dB insertion loss on TAP port input blocks all signal)
Profitap fiber TAPs provide secure in-line network access for the monitoring of 1–400 Gbps fiber networks. By splitting the light flowing on the network link, fiber TAPs deliver an exact copy of the data for real-time monitoring and analysis, without disrupting the network. Passive fiber optic TAPs require no power, and therefore introduce no point of failure when deployed in a network.
Profitap fiber TAPs are extensively tested before and after assembly by our team of experts, and are available in various split ratios and configurations to meet your specific requirements.

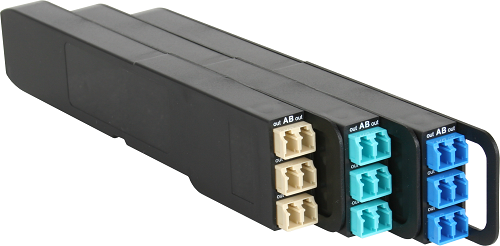

The MOD-TAP is a high-density, modular fiber optic solution providing up to 16 DiodeTAP single-mode modules or 6 DiodeTAP multi-mode modules in 1U. The chassis accepts various types of modules, such as standard LC, DiodeTAP LC, MTP, and 40/100G BiDi TAP modules
| FOOTPRINT | CONNECTORS | SPLIT RATIOS | TYPE | SPEED |
|---|---|---|---|---|
| FOOTPRINT | CONNECTORS | SPLIT RATIOS | TYPE | SPEED |
| "Up to 24 TAP modules in 1U" | LC | "50/50 60/40 70/30 " | "MM 62.5/125 µm MM 50/125 µm SM 9/125 µm " | "40/100 Gbps 40/100 Gbps" |
| Ordering Reference: F1L-MOD | ||||
Download Datasheet >> | ||||

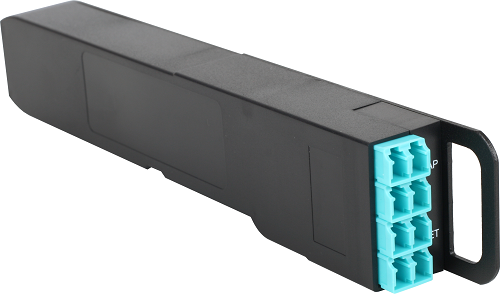

The MOD-TAP is a high-density, modular fiber optic solution providing up to 16 DiodeTAP single-mode modules or 6 DiodeTAP multi-mode modules in 1U. The chassis accepts various types of modules, such as standard LC, DiodeTAP LC, MTP, and 40/100G BiDi TAP modules
| FOOTPRINT | CONNECTORS | SPLIT RATIOS | TYPE | SPEED |
|---|---|---|---|---|
| Up to 16 TAP modules in 1U | LC | "50/50 60/40" | "OM4 MM 800/950nm 50/125µm OM5 MM 850–950nm 50/125µm" | "40/100 Gbps 40/100 Gbps" |
| Ordering Reference: F1B-MOD | ||||
Download Datasheet >> | ||||

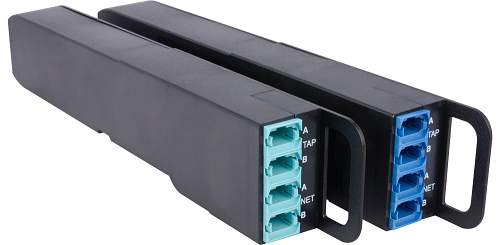

The MOD-TAP is a high-density, modular fiber optic solution providing up to 16 DiodeTAP single-mode modules or 6 DiodeTAP multi-mode modules in 1U. The chassis accepts various types of modules, such as standard LC, DiodeTAP LC, MTP, and 40/100G BiDi TAP modules
| FOOTPRINT | CONNECTORS | SPLIT RATIOS | TYPE | SPEED |
|---|---|---|---|---|
| Up to 16 TAP modules in 1U | MTP/MPO | "50/50 70/30" | "MM 40GBASE-SR4 MM 100GBASE-SR4 MM 100GBASE-SR10 SM 40GBASE-PLR4 SM 100GBASE-PSM4 " | 40 Gbps 100 Gbps 100 Gbps 40 Gbps 100 Gbps |
| Ordering Reference: F1D-MOD | ||||
Download Datasheet >> | ||||
| FOOTPRINT | CONNECTORS | SPLIT RATIOS | TYPE | SPEED |
|---|---|---|---|---|
| Up to 16 TAP modules in 1U | LC | 50/50 60/40" | "SM 9/125 µm MM 50/125 µm | 1–400 Gbps 1–25 Gbps" |
| Ordering Reference: F1D-MOD | ||||
Click here to Discover More | ||||
Ordering Reference: AMC-1U
