MTP Fiber TAPs

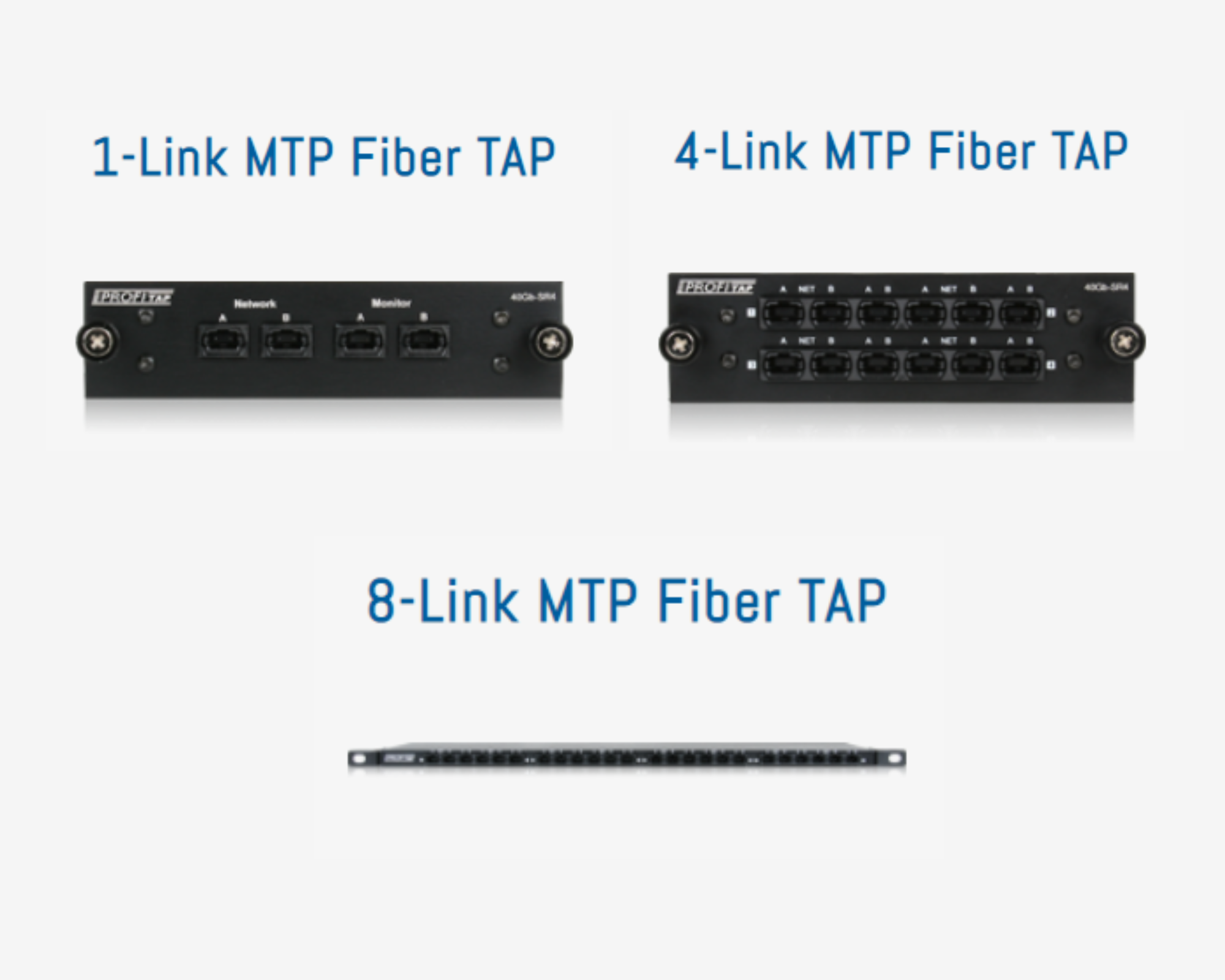

Profitap MTP Fiber TAPs are high-density MTP Fiber Optic TAPs that provide access to in-line monitoring of 40/100G fiber optic networks, ensuring complete visibility of your 40GBASE-SR4, 100GBASE-SR4, and 100GBASE-SR10 networks without packet loss.
Documents:
Key Features
1-Link MTP Fiber TAP

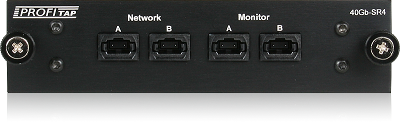

The F1M4 is a high-density MTP Fiber Optic TAP that provides in-line access to 40G and 100G fiber optic networks. This 1-Link MTP Fiber TAP provides access to your 40GBASE-SR4, 100GBASE-SR4, and 100GBASE-SR10 networks without packet loss. The Profitap MTP Series allow you to connect fan-out cables, which split one MTP connector to multiple LC connectors. Profitap 1-Link MTP Fiber TAP is non-intrusive and isolates monitoring devices from the network to ensure complete security.
Features
- Passive, unpowered
- Non-intrusive in-line network access
- No packet loss, no point of failure
- Permanent network link guaranteed
Specifications
| Network Link | Monitor Output | Connectors | Type | Speed | Split Ratio | Footprint |
|---|---|---|---|---|---|---|
| 1 | 2 | MTP/MPO | 40GBASE-SR4 100GBASE-SR4 100GBASE-SR10 | 40 Gbps 100 Gbps 100 Gbps | 50/50 50/50 50/50 | Up to 3 in 1U |
Download Datasheet >> | ||||||
| Standard | Order Reference |
|---|---|
| 40GBASE-SR4 | F1M4-SR4 |
| 100GBASE-SR4 | F1M4-SR4 |
| 100GBASE-SR10 | F1M4-SR10 |
4-Link LC Fiber TAP

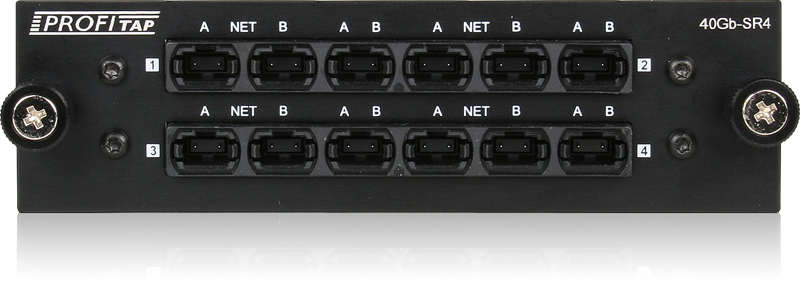

The F4MY is a high-density MTP Fiber Optic TAP that provides in-line access to 40G and 100G fiber optic networks. This 4-Link MTP Fiber TAP provides access to your 40GBASE-SR4, 100GBASE-SR4, and 100GBASE-SR10 networks without packet loss. The Profitap MTP Series allow you to connect fan-out cables, which split one MTP connector to multiple LC connectors. Profitap 4-Link MTP Fiber TAP is non-intrusive and isolates monitoring devices from the network to ensure complete security.
Features
- Passive, unpowered
- Non-intrusive in-line network access
- No packet loss, no point of failure
- Permanent network link guaranteed
Specifications
| Network Link | Monitor Output | Connectors | Type | Speed | Split Ratio | Footprint |
|---|---|---|---|---|---|---|
| 4 | 4 | MTP/MPO | 40GBASE-SR4 100GBASE-SR4 100GBASE-SR10 | 40 Gbps 100 Gbps 100 Gbps | 50/50 50/50 50/50 | Up to 3 in 1U |
Download Datasheet >> | ||||||
| Standard | Order Reference |
|---|---|
| 40GBASE-SR4 | F4MY-SR4 |
| 100GBASE-SR4 | F4MY-SR4 |
| 100GBASE-SR10 | F4MY-SR10 |
8-Link MTP Fiber TAP
The F8MY is a high-density MTP Fiber Optic TAP that provides in-line access to 40G and 100G fiber optic networks. This 8-Link MTP Fiber TAP provides access to your 40GBASE-SR4, 100GBASE-SR4, and 100GBASE-SR10 networks without packet loss. The Profitap MTP Series allow you to connect fan-out cables, which split one MTP connector to multiple LC connectors. Profitap 8-Link MTP Fiber TAP is non-intrusive and isolates monitoring devices from the network to ensure complete security.
Features
- Passive, unpowered
- Non-intrusive in-line network access
- No packet loss, no point of failure
- Permanent network link guaranteed
Specifications
| Network Link | Monitor Output | Connectors | Type | Speed | Split Ratio | Footprint |
|---|---|---|---|---|---|---|
| 8 | 8 | MTP/MPO | 40GBASE-SR4 100GBASE-SR4 100GBASE-SR10 | 40 Gbps 100 Gbps 100 Gbps | 50/50 50/50 50/50 | 1/3U |
Download Datasheet >> | ||||||
| Standard | Order Reference |
|---|---|
| 40GBASE-SR4 | F8MY-SR4 |
| 100GBASE-SR4 | F8MY-SR4 |
| 100GBASE-SR10 | F8MY-SR10 |
Profitap fiber TAPs provide secure in-line network access for the monitoring of 1–400 Gbps fiber networks. By splitting the light flowing on the network link, fiber TAPs deliver an exact copy of the data for real-time monitoring and analysis, without disrupting the network. Passive fiber optic TAPs require no power, and therefore introduce no point of failure when deployed in a network.
Profitap fiber TAPs are extensively tested before and after assembly by our team of experts, and are available in various split ratios and configurations to meet your specific requirements.
