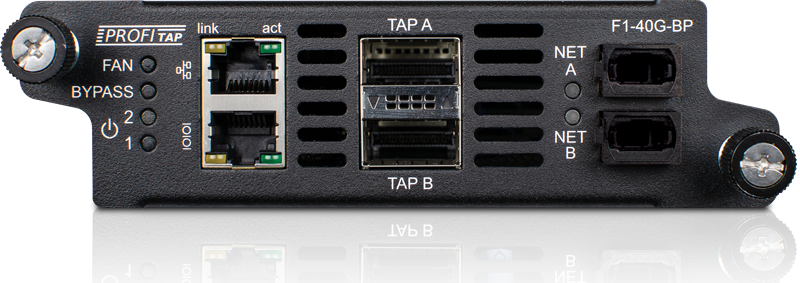

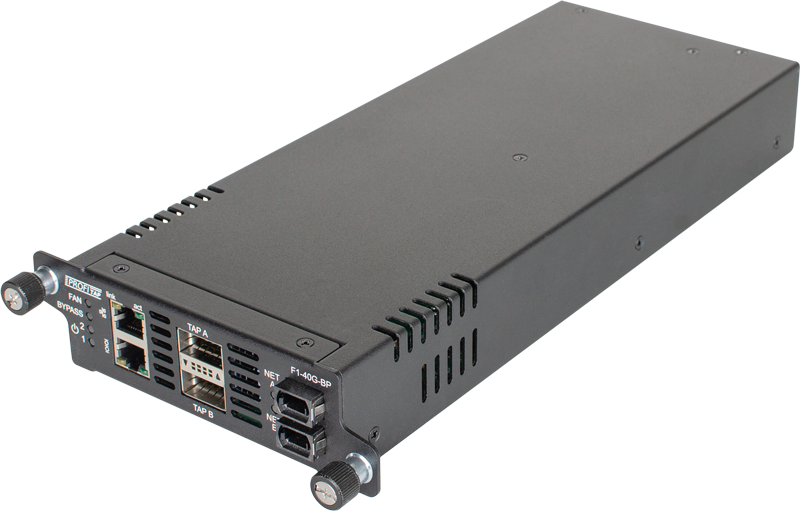

40G Bypass TAP
F1-40G-BP
Fail-safe Solution for Optimal Network Availability
The Profitap 40G Bypass TAP provides secure access for monitoring active in-line network security and performance tools. It is a fail-safe solution that actively checks the availability of in-line tools by sending heartbeat packets.
If the tools’ availability is compromised in any way, the TAP automatically switches to its bypass mode, maintaining the network link up until the issue is resolved. The Bypass TAP also allows network engineers to manually bypass the in-line tools, keeping the network fully operational during maintenance and troubleshooting.
Documents:
Key Features
- Remote access and management with GUI/CLI
- Bidirectional heartbeat (ping signal to and from the monitored appliances)
- Customizable heartbeat packets, including IPX, ICMP request/reply, LCP request/reply and TCP-SYN
- Predefined and custom heartbeat signal type
- Link Failure Propagation (LFP)
- 40G operation
- High reliability design, no point of failure
The Key for Keeping Your Network Safe and Secure
Bypass TAPs provide fail-safe access for active in-line network security and performance tools. In the event that an active in-line tool becomes unavailable, either due to a hardware malfunction, power loss, software problem, or planned maintenance, bypass TAPs ensure the network link stays operational.

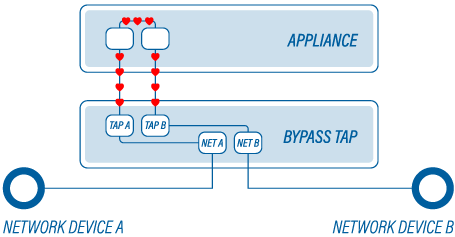

Fail-Safe Bypass & HeartbeatDesigned to support active in-line network security and performance tools, our Bypass TAPs ensure these devices don’t become single points of failure in your network. By sending heartbeat packets, they can accurately track if the connected devices are operational.
In the event that an in-line device fails, either due to a hardware malfunction, power loss, or software problem, the 40G Bypass TAP’s fail-safe protection keeps the critical link up.
| Connectors | Speeds | Footprint | Power | AC Adapter |
|---|---|---|---|---|
| 1 x LC Quad 2 x SFP+ 2 x RJ45 8 pins 2 x 12 VDC | 40 Gbps | Up to 3 in 1U | 12 VDC | 100–240 VAC |
