1G DIG Copper TAP
With DIN rail mount and 20-30 VDC powering
Industrial Gigabit Copper TAP with DIN Rail Mount

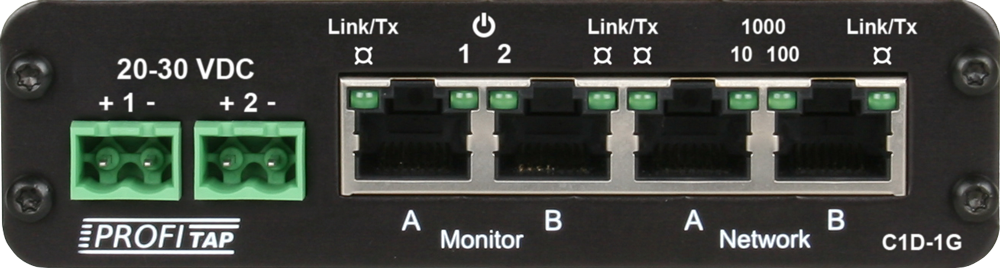

Profitap C1D-1G is a compact, lightweight, portable Gigabit Ethernet TAP that features a DIN rail clip and 20-30 VDC redundant powering for use in industrial network infrastructure. C1D-1G provides secure, passive network access for monitoring 10/100/1000 Mbps without introducing a single point of failure to the network. It monitors all 7 OSI layers and mirrors packets of all sizes and types, low-level errors, and VLAN traffic. It also features PoE passthrough, as well as No Break — a feature which ensures a very short recovery time of the network link, thanks to the use of high-speed relays, and allowing network traffic to pass through the TAP even when power is disrupted. The integrated Data Diode feature protects the network from any injection of data from the monitor ports.
Documents:
Key Features
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Fail-safe in-line design ensures uninterrupted network operation in case of power loss
- Monitoring of all 7 OSI layers
- And more
Complete visibility into your 10M/100M/1G/10G copper networks
Profitap Copper TAPs provide complete access and visibility into your network by creating an exact copy of full-duplex 10M/100M/1G/10G traffic at wire speed with no impact to the network link. Profitap Copper TAPs introduce no point of failure to the network. They are designed for redundant powering, which allows a second power supply to activate if the first were to become unavailable. In case of complete power loss, Profitap Copper TAPs guarantee that the link remains operational by instantly switching to a fully passive mode.
To maintain the network connection and prevent any interruption in traffic flow, all Profitap Active Copper TAPs feature the No Break fail-safe functionality — a quick switching mechanism which ensures a very short recovery time of the network link, thanks to the use of high-speed relays, and allowing network traffic to pass through the TAP even when power is disrupted.
 | Security Profitap Copper TAPs are non-intrusive, have no IP address, and isolate monitoring devices from the network to ensure complete security. |
 | Visibility Profitap Copper TAPs are completely IEEE 802.3/802.3af, VoIP and PoE compliant, while performing smoothly at distances of over 100 meters. |
 | Fail-Safe Our Copper TAPs introduce no point of failure to the network. They are designed for redundant powering, allowing a second power input to activate if the first were to fail. |
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Fail-safe in-line design ensures uninterrupted network operation in case of power loss
- Monitoring of all 7 OSI layers
- No packet loss, no point of failure
- Data Diode function prevents any injection of data from the monitoring ports back into the network
- Fully 802.3af & VoIP compliant, PoE passthrough
- Low power consumption
- Supports link failure propagation (LFP)
- 20-30 VDC redundant powering
- DIN rail mounting
| Network Link | Monitor Output | Speeds | Dimensions | Power |
| 1 | 1 | 10/100/1000 Mbps | 113 x 128 x 30 mm 4.4 x 5 x 1.2 in | 20 - 30 VDC |
