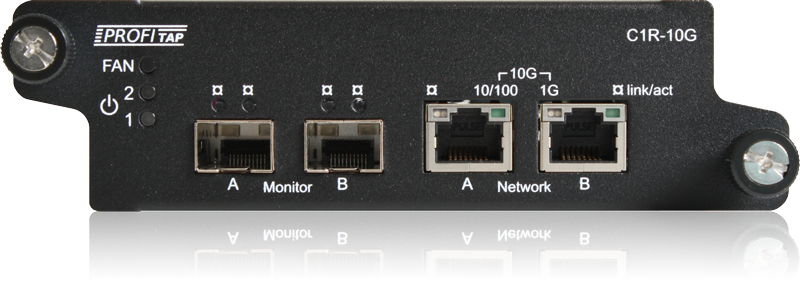

10GBASE-T TAP
10M/100M/1G/10G Copper Monitoring
Profitap 10GBASE-T TAP provides fail-safe access for monitoring 10M/100M/1G/10G copper traffic. The 10GBASE-T TAP creates an exact copy of full-duplex copper network traffic, including low-level errors, and sends it to the monitoring devices. In order to prevent network downtime, the 10GBASE-T TAP supports link failure propagation (LFP), which transmits link failure errors between ports, allowing the network to activate a redundant path, while the TAP stays available for auto-negotiation. Profitap 10GBASE-T TAP is non-intrusive, has no IP address, and isolates monitoring devices from the network to ensure complete stability and security. The integrated Data Diode feature protects the network from any injection of data from the monitor ports.
Documents:
Key Features
- Non-intrusive in-line network access
- Fail-safe monitoring
- Monitoring of all 7 OSI layers
- No packet loss, no point of failure
- And more
Complete visibility into your 10M/100M/1G/10G copper networks
Profitap Copper TAPs provide complete access and visibility into your network by creating an exact copy of full-duplex 10M/100M/1G/10G traffic at wire speed with no impact to the network link. Profitap Copper TAPs introduce no point of failure to the network. They are designed for redundant powering, which allows a second power supply to activate if the first were to become unavailable. In case of complete power loss, Profitap Copper TAPs guarantee that the link remains operational by instantly switching to a fully passive mode.
To maintain the network connection and prevent any interruption in traffic flow, all Profitap Active Copper TAPs feature the No Break fail-safe functionality — a quick switching mechanism which ensures a very short recovery time of the network link, thanks to the use of high-speed relays, and allowing network traffic to pass through the TAP even when power is disrupted.
 | Security Profitap Copper TAPs are non-intrusive, have no IP address, and isolate monitoring devices from the network to ensure complete security. |
 | Visibility Profitap Copper TAPs are completely IEEE 802.3/802.3af, VoIP and PoE compliant, while performing smoothly at distances of over 100 meters. |
 | Fail-Safe Our Copper TAPs introduce no point of failure to the network. They are designed for redundant powering, allowing a second power input to activate if the first were to fail. |
- Non-intrusive in-line network access
- Fail-safe monitoring
- Monitoring of all 7 OSI layers
- No packet loss, no point of failure
- Data Diode function prevents any injection of data from the monitoring ports back into the network
- Supports link failure propagation (LFP)
- Monitor SFP+ ports support SR, LR, and Copper modules, and passive Twinax cables
- Fully 802.3af and VoIP compliant, PoE passthrough
- Redundant powering
| Network Link | Monitor Output | Speeds | Footprint | Power | AC Adapter |
| 1 | 1 | 10M/100M/1G/10G | Up to 3 in 1U | 12 VDC | 100–240 VAC |
