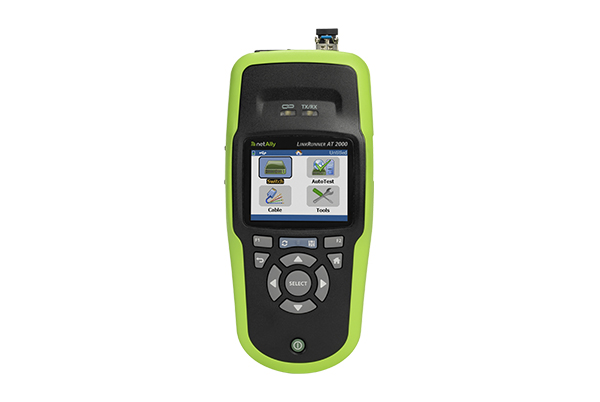

LinkRunner® AT 2000/1000

LinkRunner® AT 2000/1000

The LinkRunner AT Network AutoTester offers user-configured AutoTests for a wide range of important tasks. This network tester’s quick cable test and switch identification facilitate fast problem isolation. Test results can be automatically uploaded to the Link-Live Cloud Service to improve collaboration between network engineers and technicians, creating greater job visibility, project control, and fleet management.

Test and validate copper and fiber Ethernet connectivity in about 10 seconds

• Discover nearest switch name and port information via CDP/LLDP/EDP for your managed
switches
• View TruePower™ loaded PoE test for up to 30W 802.3af/at PSE
• Verify twisted-pair Ethernet cable length and wiremap
• Automate reporting and enable collaboration with upload and management of test
results via Link-Live Cloud Service

Datasheet - LinkRunner® AT 2000/1000

Datasheet - LinkRunner® AT 2000/1000

NetAlly Wired and Wireless Solution Brochure

NetAlly Wired and Wireless Solution Brochure

LinkRunner AT vs. LinkRunner G2 Comparison

LinkRunner AT vs. LinkRunner G2 Comparison

Documents:

Datasheet - LinkRunner® AT 2000/1000

Datasheet - LinkRunner® AT 2000/1000

NetAlly Wired and Wireless Solution Brochure

NetAlly Wired and Wireless Solution Brochure

LinkRunner AT vs. LinkRunner G2 Comparison

LinkRunner AT vs. LinkRunner G2 Comparison

Key Features

  • Discover nearest switch name and port information via CDP/LLDP/EDP and verify link speed/duplex and connectivity to TCP/IP network with AutoTest.
  • Validate up to 30W 802.3af/at PSE with TruePower™ loaded Power over Ethernet (PoE) test.
  • Verify twisted-pair cable length and wire-map in a snap.
  • Automate reporting and enable collaboration with upload and management test results via Link-Live Cloud Service.
  • Twisted-pair/copper cable test (LRAT-1000 and LRAT-2000 models), fiber optic testing (LRAT-2000 only)

Locate cable runs with toning, switch port advertisement, switch port link light blinking, and remote cable identifiers. Toning supports both analog and digital IntelliTone modes.

Check patch cables using the built-in wiremap port, including pin-to-pin connection, or installed wiring for length, shorts, or opens or split pairs.

Easily find opens, shorts, miswires, and split pairs three different ways:

• On non-terminated cable
• With a WireView Cable Identifier
• With the built-in wiremap port on the side of the LinkRunner AT

The LinkRunner AT packet reflector mode allows it to be used as a remote device during end-to-end network path performance tests to validate LAN and WAN throughput capabilities up to 1Gbps. The reflector mode can be configured to swap MAC and/or IP addresses.

LinkRunner AT 2000 supports packet reflection for:

• OptiView® XG Network Analysis Tablet
• OneTouch™ AT Network Assistant
• EtherScope™ Network Assistant
• MetroScope™ Service Provider Assistant
• Any device generating 802.3 frame or IP packet streams

Serving as a centralized test results and device management system, the complimentary Link-Live cloud service transforms team workflows with the ability to quickly and easily log, document, and report test activity from all LinkSprinter, LinkRunner AT, LinkRunner G2, AirCheck G2, and OneTouch AT hand-held network testers. Once the instrument is connected to the Link-Live Cloud Service, your test results are automatically uploaded to the dashboard for project management and reporting. You have the option of uploading additional files, screenshots, images, profiles, packet captures, location information, and comments anytime. Also, certain NetAlly instruments with AllyCare Support can receive firmware updates “over the network” from Link-Live as they become available.

An API is available to retrieve and integrate data from Link-Live into other management platforms, such as your trouble-ticket application or network management system. This gives you the ability to easily provide proof-of-performance and better manage jobs and staff efficiency.

The LinkRunner AT Network AutoTester is available in two models: LRAT-2000 and LRAT-1000.

LinkRunner AT 2000 features include*:

• Fiber support
• TruePower™ PoE Power Test up to 30W
• IPv6 support
• Reflector support
• More reports: 50 instead of 10
• Uses Li-ION rechargeable battery instead of an AA battery pack
*These exclusive features cannot be added to the LinkRunner AT 1000.
