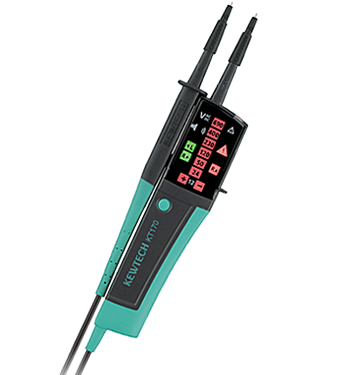

KT 170
Features:
• AC and DC voltage tests up to 690V with LED
• Comply with the latest standards IEC 61243 and IEC 61010
• Novel design
Large and bright LEDs: Values are visible in the dark place
Ergonomic design fits in the hand
• Two functions are available in one model
“Measurement without battery” and “Self Test (all LED on)”
• Test leads withstand harsh environments at low temperature
• Penlight (white LED)
• Auto-power ON/OFF
• Audible indication
• Variable test tips, φ2mm or φ4mm
• Probe protection cover can store the attachment of caps
• IP65 (IEC 60529)
Documents:
Key Features
| Voltage Test | |||||
|---|---|---|---|---|---|
| Voltage Range | 12 - 690V AC/DC | ||||
| Nominal Voltage | 12/24/50/120/230/400/690V AC (16 - 400Hz), DC (±) | ||||
| Tolerance | Light on at more than: | ||||
| (Threshold Voltage) | 7±3V (12V LED) 18±3V (24V LED) 37.5±4V (50V LED) 75%±5% of nominal voltage (120/230/400/690V LED) | ||||
| Response Time | <0.6s at 100% of each nominal voltage | ||||
| Peak Current | ls<3.5mA (at 690V) | ||||
| Measurement Duty | 30s ON (operation time) 240s OFF (recovery time) | ||||
| Single-pole Phase Test | |||||
| Voltage Range | 100 - 690V AC (50/60Hz) | ||||
| Phase Rotation Test | |||||
| System | Three-phase 4-wire system 200 - 690V phase-to-phase AC (50/60Hz) | ||||
| Phase Range | 120±5 degree | ||||
| Continuity Test | |||||
| Detection Range | 0 - 400kΩ+50% | ||||
| Test Current | Approx. 1.5μA (battery 3V, 0Ω) | ||||
| Applicable standards | IEC 61243-3, IEC 61010-1, IEC 61557-7 CAT Ⅲ 690V / CAT Ⅳ 600V Pollution degree 2 | ||||
| IP Rating | IP65 (IEC 60529) | ||||
| Operating temperature & humidity range | -15 - 55ºC, max 85% RH (No Condensation) | ||||
| Storage temperature & humidity range | -20 - 60ºC, max 85% RH (No Condensation) | ||||
| Power source | LR03 (AAA) 1.5V×2 | ||||
| Dimensions | 246(L)×64(W)×26(D) mm | ||||
| Weight | 190g (including batteries | ||||
| Included Accessories | LR03 (AAA) 1.5V×2, KTA01 (4mm metal tips [2pcs/set]), KTA02 (4mm rubber caps [2pcs/set]), Instruction manual | ||||
